Resistance Soldering > Solder Pots

Solder Pots are Built to Last! & Lead-Free Compatible
American Beauty solder pots have industry wide recognition for superior performance. Includes dross skimmer that heats to solder temperature, thereby clearing solder without degrading temperature. Internal dross is moved to lip where it cinders away. Dross skimmers are safer and more efficient than paddles, spoons and sticks that contaminate solder and lower temperature. Interested in tightening your operating parameters? Please take a moment to examine our Model V3700 Voltage Control Unit which saves you money while improving your operations.

Features & Benefits:

  • Cast Iron Crucible - Chemically stable to keep solder pure.
  • Wide Lipped - Perfect for accomadating fixtures.
  • Superior Heat Control - Uniform solder temperature in crucible.
  • Internal, Removable Dross Skimmer - Increases operator safety; maintains solder temperature

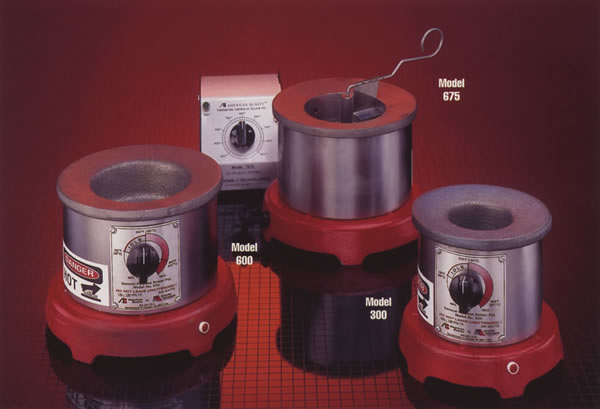

Model 300 - 1lb General Purpose Industrial Solder Pot

Typical uses include tinning the ends of stranded wire leads, pre-tinning small electrical parts, re-tinning soldering iron tips and dip soldering small printed circuit boards. Ideal solder pot for reliable control of solder termperature in harsh environments at an afforable price.

Components:

  • 9301 - Replacement Heating Cartridge
  • 8055 - Replacement Thermostat

Specifications:

  • Wattage - 320 Watts
  • Capacity - 1 lb (.45kgs)
  • Temperature Range - 350°F - 850°F(176°C - 454°C)
  • Heating Time, Full pot to 400°F (204°C)- 15 minutes
  • Heating Time, Full pot to 850°F (454°C)- 25 minutes
  • Crucible I.D.,Depth & Center Tap: 2¼", 1½" & ¼" (5.72cm, 3.81cm, 20)
  • Solder Pot O.D., Base Dia. & Height: 4¾", 5¾" & 5 1/8" (12.1, 14.6, 13.0cm)
  • Standard Voltage: 110-120V AC, 50/60 hz (220-240V AC Available)
  • Fuse - 5 AMP

Replacement Heating Cartridges - Model 9301
Replacement Thermostats - Model 8055

Weight: 6.5LBS (2.925KGS)


Model 600 - 2.5 lbs General Purpose Industrial Solder Pot

Very similar to the Model 300 solder pot except with more capacity. Typical uses include tinning the ends of stranded wire leads, pre-tinning small electrical parts, re-tinning soldering iron tips and dip soldering small printed circuit boards. Ideal solder pot for reliable control of solder termperature in harsh environments at an afforable price.

Components:

  • 9300 - Replacement Heating Cartridge
  • 8055 - Replacement Thermostat

Specifications:

  • Wattage - 600 Watts
  • Capacity - 2½ lbs (1.13kgs)
  • Temperature Range - 350°F - 850°F(176°C - 454°C)
  • Heating Time, Full pot to 400°F (204°C)- 15 minutes
  • Heating Time, Full pot to 850°F (454°C)- 25 minutes
  • Crucible I.D.,Depth & Center Tap: 3½", 1½" & 5/16" (8.9cm, 3.8cm, 18)
  • Solder Pot O.D., Base Dia. & Height: 6", 7" & 5½ (15.2, 17.8, 14.0cm)
  • Standard Voltage: 110-120V AC, 50/60 hz (220-240V AC Available)
  • Fuse - 7 AMP

Replacement Heating Cartridges - Model 9300
Replacement Thermostats - Model 8055

Weight: 9.0LBS (4.05KGS)


Model 675 - MIL Spec Solder Pot

Tinning the ends of stranded wire leads, pre-tinning small electrical parts, re-tinning soldering iron tips and dip soldering small printed circuit boards in environments where tight temperature controls must be kept. Tighter control without the costs involved with a digital solder pot.

Components:

  • 9302 - Replacement Heater Band

Specifications:

  • Wattage - 650 Watts
  • Capacity - 2¾ lbs (1.24kgs)
  • Temperature Range - 400°F - 800°F(204°C - 427°C)
  • Temperature Variation - ±15°F after one hour settling time.
  • Heating Time, Full pot to 400°F (204°C)- 13 minutes
  • Heating Time, Full pot to 800°F (454°C)- 23 minutes
  • Crucible I.D.,Depth & Center Tap: 3 1/3", 1¾" & 5/16" (5.7cm, 4.5cm, 18)
  • Solder Pot O.D., Base Dia. & Height: 6", 7" & 5½ (15.2, 17.8, 14.0cm)
  • Standard Voltage: 110-120V AC, 50/60 hz
  • Fuse - 7 AMP Type AG-3.
  • Control Module: Solid state zero corss switching, opto coupled triac. Module can be placed upto 18" away from pot.

Replacement Heating Cartridges - Model 9302

Weight: 16.5LBS (7.425KGS)


Replacement Parts for Solder Pots
MODEL NO. DESCRIPTION
8053 Thermostat / Nameplate Kit for Model 300 Solder Pots built before August 1998
8056 Thermostat / Nameplate Kit for Model 600 Solder Pots built before August 1998
8055 Thermostat Assembly for Model 300 & 600 Solder Pots built before August 1998
8057 Replacement Knob for Model 300 and 600
874S3 Cord Set for Model 300 and 600
9301 Cartridge Heating Element for Model 300 Solder Pot (Two elements required)
9300 Cartridge Heating Element for Model 600 Solder Pot (Two elements required)
9302 Heater Band for Model 675 Solder Pot (One element required)
302 Dross Skimmer for Model 300 Solder Pot
602 Dross Skimmer for Model 600 Solder Pot
