PLATEN-MOUNTED HOLDERS

TUFFALOY PM holders may be mounted directly to press-type welder platens, or they can be used as components of special weld fixturing. They come in two sizes, which match standard T-slot spacings (either of which can be furnished to hold any of the four standard tips: 4, 5, 6, or 7 RW). The smaller holder is for use on RWMA Size 1 welders, which have the 3-1/2 inch spacing. The larger one is for the Size 2 and 3 welders, which have the 5- and 6-inch spacing.

Big, half-inch mounting bolts may be used to assure good conductivity. The holders may be used one-to-one or in multiples closely bunched. PM holders make special fixture building easy. They can be bolted to a fixture or back-up base as easily as to a platen. They are compact and have self-contained coolant systems.

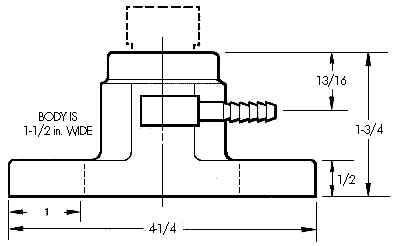

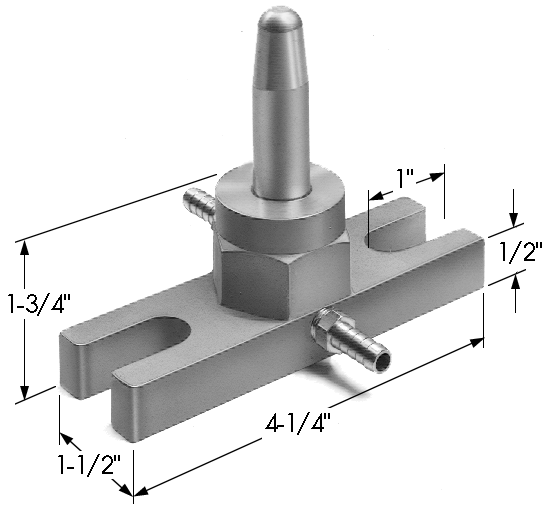

SIZE 1 PM HOLDER (9/16-inch mounting bolts)

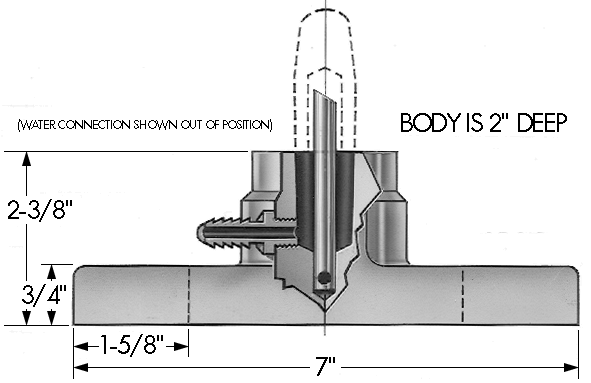

STANDARD TIP PM HOLDERS

RW Tip Socket
Size 1 (Small)
Size 2 (Large)
Description
Item No.
Description
Item No.
4 4560 350-4560 4570 350-4570
5 4561 350-4561 4571 350-4571
6 4562 350-4562 4572 350-4572
7 4563 350-4563 4573 350-4573











THREADED PM HOLDERS

(CLICK HERE FOR THREADED ELECTRODES)

THREAD SIZE SIZE 1 SIZE 2
5/8-11

3/4-10

7/8-14

350-4580

350-4581

350-4582

350-4590

350-4591

350-4592

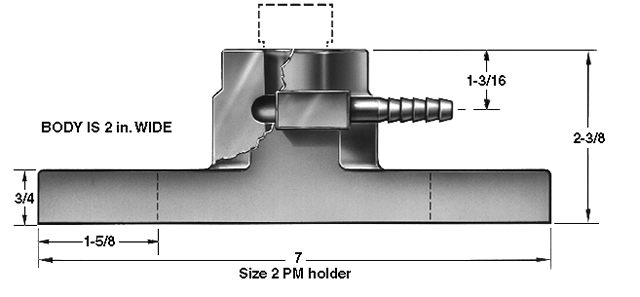

1 & 2 PM HOLDERS

(CLICK HERE FOR STUD NUT ELECTRODES)

PM HOLDERS T-SLOT SPACING HOLDER SIZE FOR 1" DIAMETER ELECTRODES FOR 2" DIAMETER ELECTRODES
DESCRIPTION ITEM NO. DESCRIPTION ITEM NO.
3-1/2

5 & 6

1PM

2PM

4515

4525

350-4515

350-4525

4526 350-4526
