STRAIGHT HOLDERS

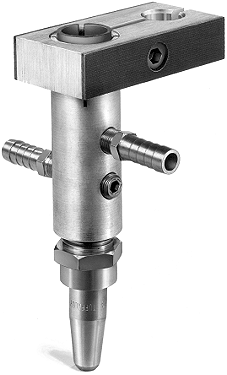

TUFFALOY STRAIGHT HOLDERS are available in three sizes, to carry tips havng four different diameters. SERIES 101 holders are for 4 & 5 RW tips, and SERIES 102 holders are for 6 & 7 RW tips. They may be ordered with one or two sets of coolant ports.

Mating electrical contact surfaces of both the barrels and the clamp are silver plated. Item Numbers for replacement barrels and clamp parts are called out on the drawings.

CLAMP AND BARREL ARE SEPARATE PARTS

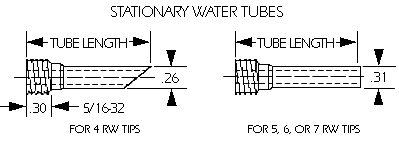

Adapters, water connectors and water tubes are sold separately. For information on water tube use,
CLICK HERE.

 Length
FOR 4RW USE
FOR 5RW, 6RW OR 7RW USE
Description
Item No.
Description
Item No.
3/4 301-.7 194-3107 312-.7 194-3207
1 301-1.0 194-3110 312-1.0 194-3210
1-1/4 301-1.2 194-3112 312-1.2 194-3212
1-1/2 301-1.5 194-3115 312-1.5 194-3215
1-3/4 301-1.7 194-3117 312-1.7 194-3217
2 301-2.0 194-3120 312-2.0 194-3220
2-1/2 301-2.5 194-3125 312-2.5 194-3225
3 301-3.0 194-3130 312-3.0 194-3230
3-1/2 301-3.5 194-3135 312-3.5 194-3235
4 301-4.0 194-3140 312-4.0 194-3240
4-1/2 301-4.5 194-3145 312-4.5 194-3245

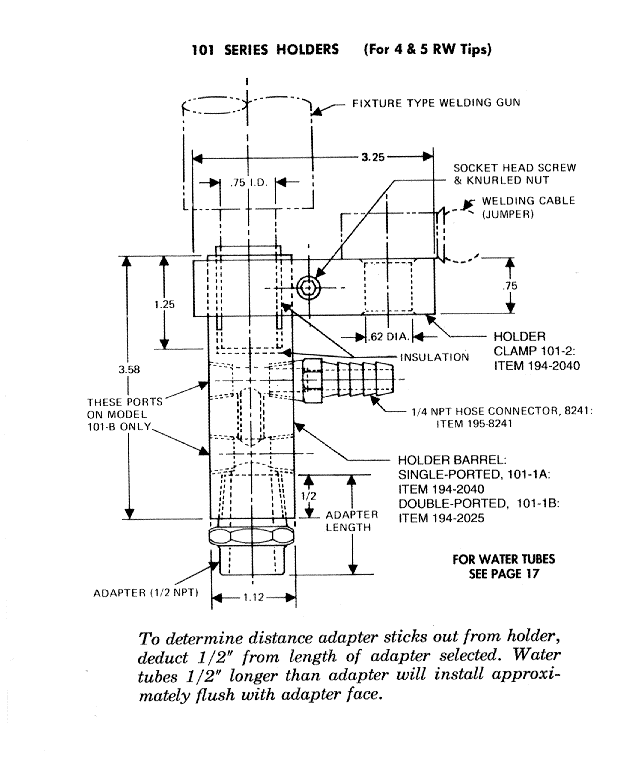

101 SERIES HOLDERS (For 4 & 5 RW Tips)

To determine distance adapter sticks out from holder, deduct 1/2-in. from length of adapter selected. Water tubes 1/2-in. longer than adapter will install approximately flush with adapter face.

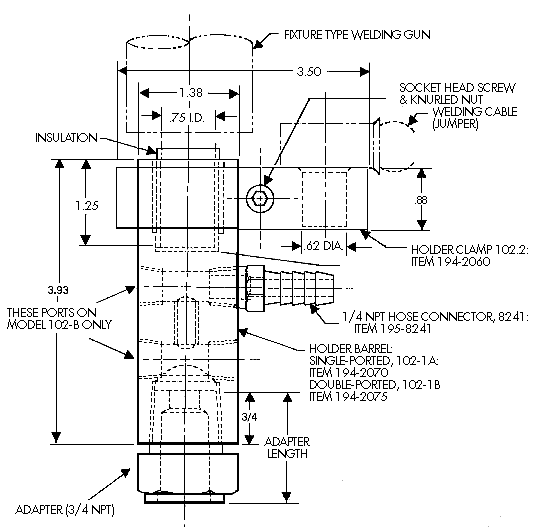

102 SERIES HOLDERS (For 6 & 7 RW Tips)



To determine distance adapter sticks out from holder, deduct 3/4-in from length of adapter selected. Water tubes 3/4-in longer than adapter will install approximately flush with adapter face.

HOLDERS

Length
 Holders For Tip Sizes
Number of Coolant Ports
One Set
Two Sets
Clamp
Description
Item No.
Description
Item No.
Description
Item No.
1/2 4 &5 RW  101-A 194-2020 101-B 194-2025 101-2 194-2040
3/4 6 & 7 RW 102-A 194-2070 102-B 194-2075 102-2 194-2060
7/8 4 & 5 RW 103-A 194-2080
