SLIDING FIXTURE TABLES


Resistance welding operations can often be done more safely and easily by mounting the work fixture on a table that shuttles in and out of a press-type welder. Loading and unloading can be done faster and with less hazard outside the point of operation. The upper tooling no longer restricts the clearance needed to load parts.

These TUFFALOY sliding tables are standardized high-quality production-line units, made to fit size 1 and 2 press welders. Tables and (silver-plated) rails are of Class 2 alloy. Air cylinder-powered models have speed control valves for both directions and a manual 4-way control valve. Covers keep dirt and spatter off the rails.

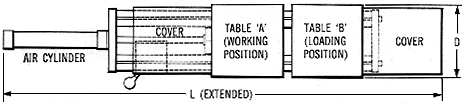

DUAL TABLE, POWERED

SINGLE TABLE, MANUAL



HOLE PATTERN

SIZE 1 platens, 3-1/2-inch spacing

SIZE 2 platens, 5-inch spacing

Hole pattern can be ordered to your specifications

Tables
Operation
RWMA Press Welder Size
Tables
Dimensions
Description
Item No.
L
H
D
Dual Powered #1 6 x 6 41-3/4 2-1/4 6 DTP-1 620-0001
Dual Powered #2 8 x 8 49-3/4 2-5/16 8 DTP-2 620-0002
Single Manual #1 6 x 6 23-7/8 2-1/4 6 STM-1 620-0101
Single Manual #2 8 x 8 29-7/8 2-5/16 8 STM-2 620-0102
Single Powered #1 6 x 6 29-1/2 2-1/4 6 STP-1 620-0201
Single Powered #2 8 x 8 33-1/2 2-5/16 8 STP-2 620-0202


SPECIAL FIXTURES

If more than standard tips and holders are required to do a job, special fixturing can be designed and built for you. TUFFALOY'S engineers will use as many standard components as possible to keep costs down, and TUFFALOY offers more of these than anyone else.
