STANDARD OFFSET HOLDERS



TUFFALOY Cast Class 3 Alloy offset holders combine long life with good conductivity. Threaded tip adapters are easily replaced when tip socket is worn beyond use, or when you wish to change to a different taper size. The 'in-water' tube, projecting beyond the adapter, is not rigidly fixed, will withstand considerable mistreatment.

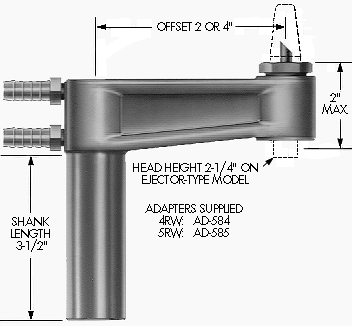

TUFFALOY offset holders are made in 2 and 4-inch offsets and in four shank sizes, with 90° and 30° heads. They are supplied with adapters for No.4 or No. 5 RW taper tips.

Tip Ejector mechanisms are available on all 90° head holders and the 30° head in 4-inch. offset holders. When ordering this feature change order number prefix from 'ON' to 'OE'. Example: OE-874-290.

ADAPTERS SUPPLIED

4RW: AD-584

5RW: AD-585 Color

TWO-INCH OFFSET HOLDERS

Adapter Tip Socket
Socket Angle
3/4" SHANK DIA.
7/8" SHANK DIA.
1" SHANK DIA.
 1-1/4" SHANK DIA.
1-1/2" SHANK DIA.
Description
Item No.
Description
Item No.
Description
Item No.
Description
Item No.
Description
Item No.
4RW 30 ON-754-230 335-1300* ON-874-230 335-1400* ON-14-230 335-1000 ON-1254-230 335-1100 ON-154-230 335-1200*
4RW  90  ON-754-290 335-1310*  ON-874-290 335-1410* ON-14-290 335-1010 ON-1254-290 335-1110 ON-154-290 335-1210*
5RW  30  ON-755-230 335-1350*  ON-875-230 335-1450* ON-15-230 335-1050 ON-1255-230 335-1150 ON-155-230 335-1250*
5RW  90  ON-755-290 335-1360*  ON-875-290 335-1460* ON-15-290 335-1060 ON-1255-290 335-1160 ON-155-290 335-1260

FOUR-INCH OFFSET HOLDERS

Adapter Tip Socket
Socket Angle
3/4" SHANK DIA.
7/8" SHANK DIA.
1" SHANK DIA.
1-1/4" SHANK DIA.
1-1/2" SHANK DIA.
Description
Item No.
Description
Item No.
Description
Item No.
Description
Item No.
Description
Item No.
4RW  30 ON-754-430 335-1320* ON-874-430 335-1420* ON-14-430 335-1020 ON-1254-430 335-1120 ON-154-430 335-1220*
4RW  90 ON-754-490 335-1330* ON-874-490 335-1430* ON-14-490 335-1030 ON-1254-490 335-1130 ON-154-490 335-1230*
5RW 30 ON-755-430 335-1370* ON-875-430 335-1470* ON-15-430 355-1070 ON-1255-430 335-1170 ON-155-430 335-1270
5RW 90 ON-755-490 335-1380* ON-875-490 335-1480* ON-15-490 335-1080 ON-1255-490 335-1180  ON-155-490  335-1280

*May not be in stock.
