TUFFALOY SWIVEL TIPS

Swivel tips have ball-jointed swivel heads to compensate for minor misalignment, and to eliminate marking of the work surface. They are all machined from Class 2 alloy bar stock. The S-Series tip water hole does not reach the head. In the OS and OSH models, the water does contact the head, and O-rings are used to seal it. Class 1, class 3 and 10W (copper-tungsten) heads are also available. NOW WITH ANTI-SIEZE LUBRICANT!

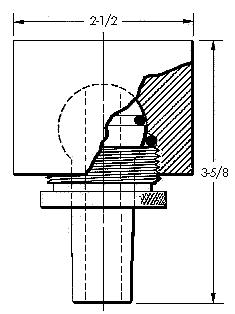

The Giant swivel-head electrode for projection welding has a face 2-1/2 inches in diameter, a double O-ring seal, and a replaceable head. It is ideal for accomplishing uniform set-down of multiple projections. It is the largest tip TUFFALOY offers from stock. If a larger one should be needed, TUFFALOY is prepared to supply it. 7 RW.



S-SERIES* (Tuffcap Design) S-Series
OS-Series OSH-Series
 Taper No.
Face Dia. 'F'
S-Series Description
S-Series Item No.
OS-Series Description
OS-Series Item No.
OSH-Series Description
OSH-Series Item No.
 5-CT*
7/8

1

1-1/4

S-248

S-249

S-250

S-348

182-0248

182-0249

182-0250

182-0348

OS-348
182-1348
4RW
7/8

1

1-1/4

S-350

S-351

S-349

S-353

182-0350

182-0351

182-0349

182-0353

OS-350

OS-351

OS-349

OS-353

182-1350

182-1351

182-1349

182-1353

OSH-353
182-2353
5RW
7/8

1

1-1/4

1-1/2

2

S-354
182-0354
OS-354
182-1354
OSH-354

OSH-356

OSH-358

182-2354

182-2356

182-2358

7RW
2-1/2

3360
182-3360

* Will fit Tuffcap adapter shanks having No. 5 male cap.





Note: Standard swivel tilt is approximatel 18°. A 25° swivel is available on request. Add suffix "HS" to part number.
