TUFFALOY THREADED TIPS

Threaded Electrodes:

        • Seat always at the same height.
        • Are constructed of Class 2, 3, and Zirc alloy
        • Can be changed with standard tools–no special installation tools are needed
        • Are easy to change!

HOW TO ORDER

Example: 30512-14-B

3 05 12 -14 -B
CLASS MATERIAL HEX SIZE OVERALL LENGTH 'A' IN 1/8" INCREMENTS THREAD SIZE NOSE STYLE
CLASS 2

CLASS 3

ZIRC Alloy

1/2"

5/8"

1"

1-1/4"

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

10

11

12

13

14

15

16

A

B

C

D

E

F

POINTED ELECTRODES

OVERALL LENGTH TIP DIAMETER MALE THREAD DESCRIPTION
2 1

1

1

1-1/4

5/8-11

5/8-18

3/4-10

3/4-10

5100-11-A

5100-18-A

5100-10-A

5125-10-A

DOME ELECTRODES

OVERALL LENGTH TIP DIAMETER MALE THREAD DESCRIPTION
2 1

1

1

1-1/4

5/8-11

5/8-18

3/4-10

3/4-10

5100-11-B

5100-18-B

5100-10-B

5125-10-B

FLAT ELECTRODES

 A
Overall Length
B
Tip Dia.
C
Male Thread
Description
2 1 5/8-11 5100-11-C
1 5/8-18 5100-18-C
1 3/4-101 5100-10-C
1-1/4 3/4-10 5125-10-C







TRUNCATED ELECTRODES


 A
Overall Length
B
Tip Dia.
C
Male Thread
Description
2 1 5/8-11 5100-11-E
1 5/8-18 5100-18-E
1 3/4-10 5100-10-E
1-1/4 3/4-10 5125-10-E

RADIUS ELECTRODES

OVERALL LENGTH TIP DIAMETER MALE THREAD DESCRIPTION
2 1

1

1

1-1/4

5/8-11

5/8-18

3/4-10

3/4-10

5100-11-F

5100-18-F

5100-10-F

5125-10-F



"A" NOSE ELECTRODES

OVERALL LENGTH TIP DIAMETER MALE THREAD DESCRIPTION
3/4

3/4

5/8

5/8

7/16-14

3/8-16

5062-14-A

5062-16-A

"B" NOSE ELECTRODES

OVERALL LENGTH TIP DIAMETER MALE THREAD DESCRIPTION
3/4

3/4

5/8

5/8

7/16-14

3/8-16

5062-14-B

5062-16-B

"C" NOSE ELECTRODES

 A
Overall Length
B
Tip Dia.
C
Male Thread
Description
3/4 5/8 7/16-14 5062-14-C
3/4 5/8 3/8-16 5062-16-C



"E" NOSE ELECTRODES


 A
Overall Length
B
Tip Dia.
C
Male Thread
Description
3/4 5/8 7/16-14 5062-14-E

"F" NOSE ELECTRODES

OVERALL LENGTH TIP DIAMETER MALE THREAD DESCRIPTION
3/4

3/4

5/8

5/8

7/16-14

3/8-16

5062-14-F

5062-16-F

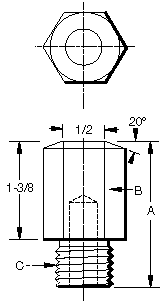

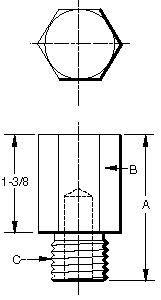

1/2" HEXAGON DRY ELECTRODES

EX.: H3-05007-12-F

H

Hex

3

Alloy

-050

Hex, Size across Flats

07

Over-All Length in 1/8" Increments

-12

Thread

-F

Nose Configuration

H 2

3

Z

050 06

07

08

12

14

16

A=POINTED NOSE

B=DOME NOSE

C=FLAT NOSE

D=OFFSET NOSE

E=TRUNCATED NOSE

F=RADIUS NOSE

STOCKED PART NUMBERS

H2-05007-16-B

H2-05007-16-C

H3-05006-16-F

H3-05007-16-A

H3-05006-16-F

HZ-05006-16-F

HZ-05007-16-A

HZ-05007-16-B

HZ-05007-16-C

HZ-05007-16-F

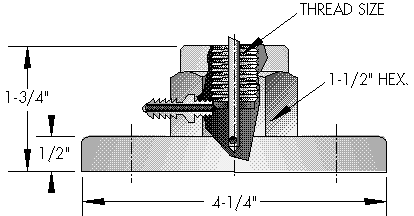

THREADED PM HOLDERS

 Thread Size
 Size 1
 Size 2
5/8-11
3/4-10
7/8-14
350-4580
350-4581
350-4582
350-4590
350-4591
350-4592

Click Here to go to Platen-Mounted Holders information.
