CYLINDER-MOUNTED HOLDERS

These standard-tip holders are mounted directly to air or hydraulic cylinder pistons. They are ideal for assembling special multi-head resistance welding equipment. Current and coolant water are brought to each of the holders in a set-up separately.

Electrode adapters for the tip diameter being used and in lengths to suit your set-up are ordered separately. Water tubes, for carrying water into the tip, should also be ordered separately. For information on water tube use, CLICK HERE.

TUFFALOY offers both straight and offset holders for cylinder mounting. Clamps not included, but are available as a separate order item.

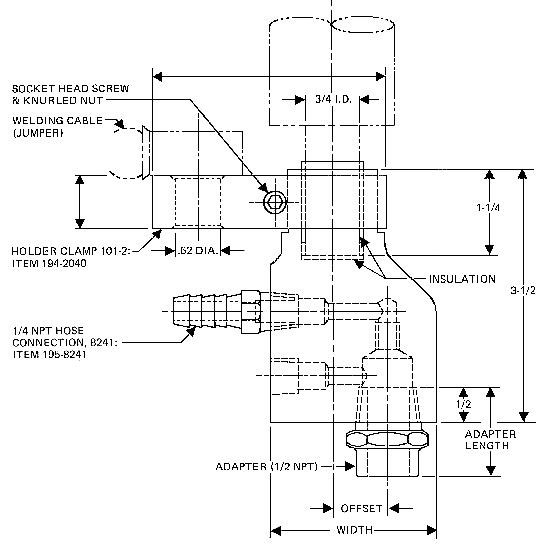

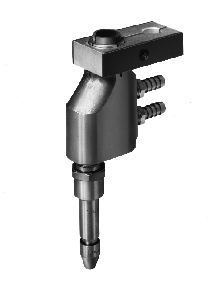

OFFSET HOLDERS

Offset holders are offered in eight offset sizes, from 1/8 to 1 inch. The standard models have a 1/2-NPT adapter socket, to hold adapters for 4 & 5 RW tips. Ordering a 3/4-NPT socket will permit adapters for 6 & 7 RW tips to be used. Also available on a per order bases are 7/8=14 NF and 1-12 NF threaded sockets.

 Offset (inches)
Width (inches)
4 & 5 RW Item No. 1/2" Pipe
6 & 7 RW Item No. 3/4" Pipe
1.0 2.5 194-1588 194-1598
0.88 2.5 194-1587  194-1597
0.75 2.31 194-1586 194-1596
0.62 2.18 194-1585  194-1595
0.50 2.06 194-1584 194-1594
0.38 1.94 194-1583  194-1593
0.25 1.81 194-1582  194-1592
0.12 1.68 194-1581
For straight-thread adapters use suffix "7/8-14 N.F." Example: 194-1588-7/8-14 NF.


ORDER CLAMP SEPARATELY

To determine distance adapter sticks out from holder, deduct 1/2-in. from length of adapter selected. Water tubes 1/2-in. longer than adapter will install approximately flush with adapter face.





 Length
FOR 4RW USE
FOR 5RW, 6RW OR 7RW USE
Description
Item No.
Description
Item No.
3/4 301-.7 194-3107 312-.7 194-3207
1 301-1.0 194-3110 312-1.0 194-3210
1-1/4 301-1.2 194-3112 312-1.2 194-3212
1-1/2 301-1.5 194-3115 312-1.5 194-3215
1-3/4 301-1.7 194-3117 312-1.7 194-3217
2 301-2.0 194-3120 312-2.0 194-3220
2-1/2 301-2.5 194-3125 312-2.5 194-3225
3 301-3.0 194-3130 312-3.0 194-3230
3-1/2 301-3.5 194-3135 312-3.5 194-3235
4 301-4.0 194-3140 312-4.0 194-3240
4-1/2 301-4.5 194-3145 312-4.5 194-3245
